The platform provides a convenient, scalable, and cost-effective way to organize optical and copper connections within a single enclosure, allowing the patching infrastructure to be quickly adapted to changing network requirements.
Unlike traditional solutions based on pre-terminated breakout and conversion cassettes, Gloriosa features a modular architecture that combines adapter modules and pre-terminated in-panel optical assemblies. This approach significantly simplifies system configuration, reduces upgrade costs, and provides maximum flexibility when introducing new services and changing equipment configurations.

The ability to accommodate LC and MPO (MTP) optical interfaces, as well as RJ-45 twisted-pair ports, within a single 1U enclosure makes the platform a versatile solution for connecting Top-of-Rack (ToR) switches, servers, storage systems, and other network equipment.

Key Benefits

• Modular architecture for rapid adaptation to project requirements.
• Optical and copper interfaces in a single 1U enclosure.
• High connection density while maintaining ease of operation and maintenance.
• Scalability without replacing the base panel, thanks to interchangeable modules and pre-terminated in-panel assemblies.
• Fast servicing and reduced time required for MAC (Moves, Adds & Changes) operations.
• Integration with the MYCELIUM ecosystem and other Patchwork solutions.

Platform Components

The Gloriosa platform includes:

• a sliding panel that can be accessed and pulled out from both the front and rear of the rack;
• a front cable manager with a transparent hinged or removable cover and an integrated port labeling area;
• tool-free interface modules with LC and MPO (MTP) adapters, installable from either the front or rear of the panel;
• pre-terminated MTP–LC and MTP–MTP in-panel optical assemblies for Base-8, Base-12, Base-16, and Base-24 configurations;
• RJ-45 modules for integrating copper connections into a single patching platform.

System Architecture

The Patchwork Truncus™ system includes a complete range of components for building cable routes of any complexity:

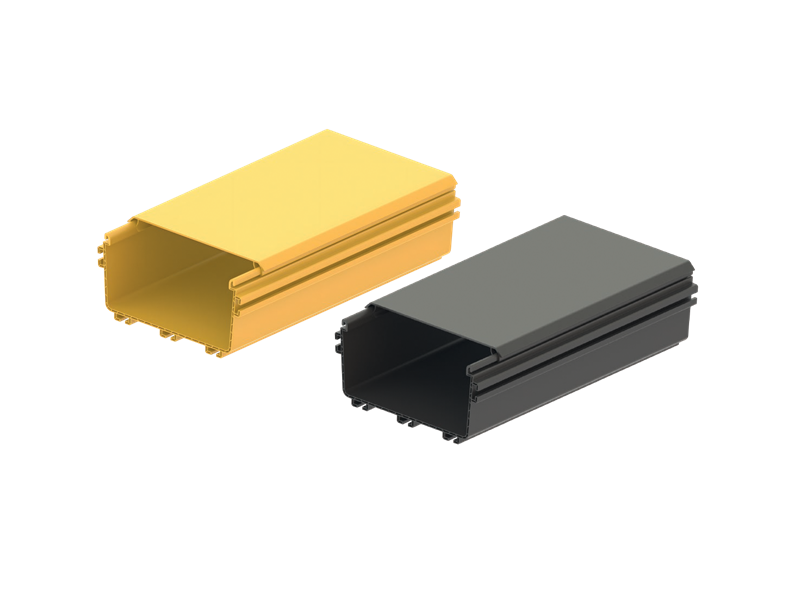

• horizontal straight sections;
• vertical straight sections;
• horizontal corner elements;
• vertical corner elements;
• connecting joints;
• vertical drops (downspouts);
• distribution elements;
• mounting kits;
• suspension systems;
• vertical flexible sections;
• fiber slack management elements.

The modular design of the system, combined with a wide range of fittings and installation accessories, makes it possible to create cable routes of virtually any configuration while maintaining the minimum fiber bend radius. Fully removable covers provide quick access to cables, simplifying installation, maintenance, and network upgrades. A valid fire safety certificate confirms that the system can be used at facilities with enhanced requirements for the reliability of engineering infrastructure.

Design Recommendations

When designing the infrastructure, it is recommended to:

• use an initial fill level of no more than 50%;
• design cable routes with increasing MPO/MTP connection density in mind.
• allow for spare capacity to accommodate future growth;
• provide for AI/GPU Fabric expansion;

In modern AI and HPC platforms, minimizing cable tray dimensions to reduce initial costs can lead to scalability limitations and increased costs during upgrades. Patchwork recommends designing the infrastructure with sufficient capacity and scalability reserves.

Applications

Patchwork Truncus™ is designed for use in:

• AI POD and GPU clusters;
• Head-end and HPC infrastructure;
• Data Centers;
• Telecommunications facilities;
• Central Offices;
• Containerized facilities (CEVs);
• Server rooms;
• High-density distribution areas.

High capacity, routing flexibility, and a modular architecture make Patchwork Truncus™ an effective platform for building next-generation cabling infrastructure.
